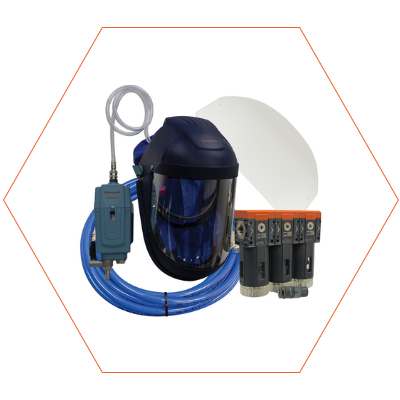

Air-Fed Visor Kit

This kit is essential for users spraying polyurethane lacquers due to the release of isocyanate, a molecule with a very low short-term exposure limit as determined by the Health & Safety Executive. This kit can be used when spraying other lacquers if desired to ensure maximum air quality when the kit is well maintained. It is important to ensure air is flowing and that the filters are regularly checked to ensure a reliable, clean supply of air. Filters are necessary to remove oils and other contaminants from the air.

The visor is fed with air from outside the spray booth via the compressor, and is available in three configurations. The air-fed mask requires a certain volume of air flow per minute. A standard 3HP 150L compressor will run an air-fed visor. However, air supply to an air-fed visor as well as a spray system will require a 7.5HP 270L compressor

Option 1 - for customers wanting to replace the mask on an existing system

  • visor and waist belt only (S1013939)









Option 2 - for customers with good quality filtered air

  • single wall mounted coalescing filter (S5624D104)
  • visor and waist belt (S1013939)
  • 10m breathing air hose with quick release fittings (SVIUAN0910/T26)
  • 1/2" BSP male high flow coupling (S530015000)                                                                                                                                                                                                             -   10 tear off visor covers to help keep the visor clear of overspray (S1001778)









Option 3 - for customers with questionable air quality or for users wanting maximum protection

  • three-stage wall mounted filter set (SMODTBS4)
  • visor and waist belt (S1013939)
  • 10m breathing air hose with quick release fittings (SVIUAN0910/T26)
  • 10 tear off visor covers to help keep the visor clear of overspray (S1001778)                                                                                                                                                                   -   1/2" BSP male high flow coupling (S530015000)

Product Codes

S1013939 Visor and waist belt
S1001778 Visor tear-off covers (10 pack)
S5624D104 Coalescing filter only
SVIUAN0910/T26 10m breathing air hose & connections
SMODTBS4 Three-stage air filter set
S530015000 1/2" BSP male high flow coupling
S1001672 Airvisor 2 carbon cartridge
S1001676 Airvisor 2 spare neck cover (5)
S1001683 Airvisor 2 gun air hose 1.2m
S1001775 Airvisor 2 acetate visor (5)
S1013994 Airvisor 2 fabric face seal (5)
S1028822 Airvisor 2 browguard/headband
S1028825 Airvisor 2 airtube/diffuser
S1028830 Airvisor 2 high flow QF fitti
S1028831 Airvisor 2 high flow QR socket
S1028870 Airvisor 2 seal strips
