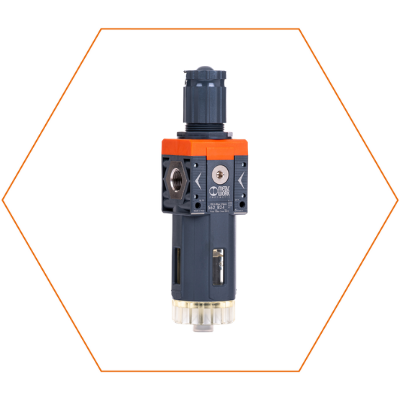

Mod Air Filter Regulator 0.5"

This device combines filtration, condensate separation and pressure regulation in a single unit.

• Separation of condensate and larger liquid and solid particles by
  centrifugation.
• Three condensate drain options (RMSA, RA and SAC).
• 360° visually inspection of the condensate level, via transport
  spy-holes.
• Rolling diaphragm regulator, allowing maximum precision and flow
  rate, and minimal friction.
• Compensation for upstream pressure changes.
• Pressure relief valve.
• Quick downstream pressure relief.
• Padlockable push-lock knob.
• Front and rear ports for pressure gauges, pressure switches or,
  considering the high flow rate, for use as additional filtered and
  regulated air take-off.

One unit for filtration, condensate separation and pressure regulation.
Adjusted pressure stays constant despite pressure variations.
360° viewing glass.
Relief valve.
Padlockable push-lock knob.
Including pressure gauge.
Additional ports for pressure gauges, pressure switches or for use as additional air take-off.

View other Sprayshop® items and wood finishes.

• Threaded port: 1/2"
• Max inlet pressure: 13bar
• Weight: 596g
• Bowl capacity: 70cm³
• Min/max temperature at 10bar: -10 to +50°C
